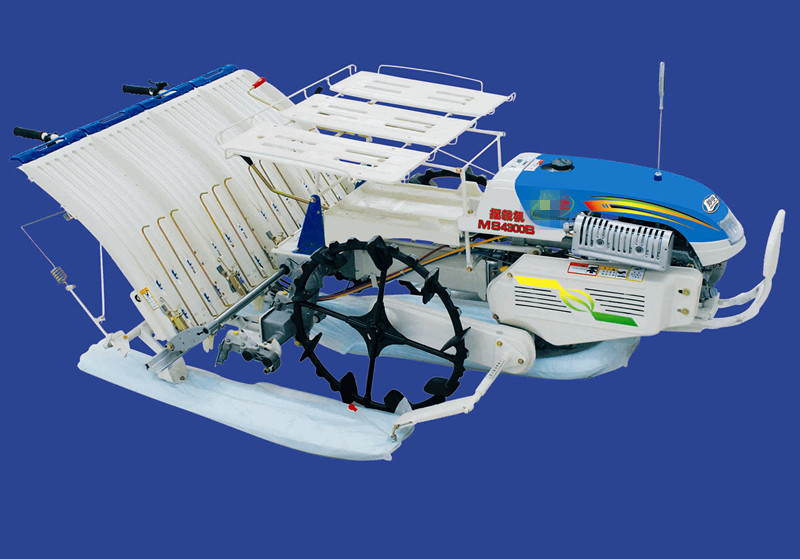

Zs-430 Paddy Rice Transplanter
| Price : | Price Negotiable |
| Quantity : | 500 (set) |
| Minimum Order : | 1 |
| Product Status : | New |
| Sample Available : | no |
| Shipment Terms : | fob,cfr,cif,Negotiable |
| Payment Mode : |
T/T,L/C,cash,cheque,WesternUnion,Negotiable |
| Categories : | Machinery, Agricultural Machinery, Loader, Excavator & Bulldozer, Other Machines |
| Posted By : | Weifang Huaxin Diesel Engine Co., Ltd. |
Description
We are manufacture of the rice transplanter machine 6 rows, 8 rows and 10 rows. Common type, electronic start engine type and hydraulic type optional. Model:2ZT-4300;2ZT-6300, 2ZT-8300, 2ZT-8238, 2ZT-10238 etc. The detailed information as follows:
| Item | Rice Transplanter specification |
| Dimensions (Length x Width x Height) (mm) | 2415 x 2165 x 1300 |
| Overall machine weight | 250Kg~400Kg |
| Adopted power | 170 Air cooled Diesel engine (3.23kw @ 2600rpm) 175 Air cooled diesel engine(4.4KW@2600rpm); 178F/E Air cooled diesel engine (5.5KW@3000rpm) |
| Transplant part | Single wheel drive strip plate profiling |
| Work part | Split Stirling Crank and close rod transplanting part |
| Row numbers (row) | 4/6/8/10 |
| Row distance (mm) | 238 / 300 |
| Plant spacing of transplants (mm) | 120-140;140-170; 120-140-170-190-210 |
| Rice planting depth (mm) | The lifting rod is stepless adjustment |
| Working speed per row (m/s) | 0.35 – 0.58 |
| Running speed on rod (km/h) | 7.8-10.7 |
| Working capacity (mu/h) | 2~5 |
| The maximum width of separating needles entering into seedling discharge gate | 17 |
| Single trip transverse dividing seedling sequence (time) | 14 |
| Paddy field impeller | OD is 680mm |
| Run on road | OD is 705mm |
| The maximum angle of road wheel left and right turning | 600 |
Details:
Model 2Z-430 Qty. Of 20GQ 6
Type Two wheels, three floating plates type
Walking wheel Rubber tire needle driving wheel
Length*Width*Height(mm) 2460*1480*860(980)
Weight(kg) 175
Engine name B&S 93400 (American)
Engine Power(HP/rpm) 3.5/4000
Variable speed Forewords two gears, backwards one gear
Working capacity 2-4(mu/h)
Working speed 0.31-1.10m/s
Working speed on road <=1.10m/s
Working lines 4rows
Rows distance(mm) 300(fixed)
Number of hill/seeding 35hills(standard, adjustable)
Hill mumber(each 3.3 m2) 45 50 60 70 80 90
Seeding distance (mm) 223 200 180 146 130 117
 |
|
