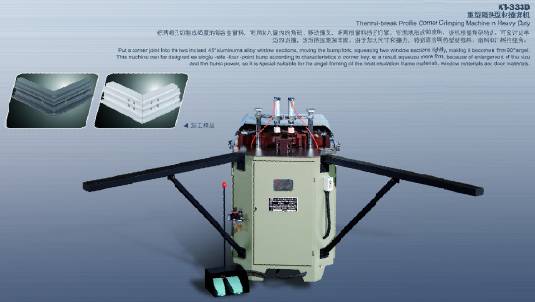

Kt-333d Aluminum Crimping Machine (joining Machine
| Price : | Price Negotiable |
| Quantity : | 100 () |
| Minimum Order : | 1 |
| Product Status : | New |
| Sample Available : | no |
| Payment Mode : |
Bank Transfer,L/C |
| Categories : | Machinery, Construction Machinery, Metallic Processing Machinery |
| Posted By : | Foshan Shunde Kingtool Windows Doors Machinery Industry Co Ltd |
Description
Put the gusset into the 45°aluminum alloy window profile, move the bump folks, squeeze the two window profile tightly and make a 90°angle firmly. You can adjust the machine to 1-side-four-point crimping according to the characteristic of the gusset. Because of enlarging the size and the crimping force, it is an ideal choice for the corner crimping of thermal-break door and window profiles.
MAIN TECHNIQUE PARAMETER
1.Oil pump motor power........................3KW
2.Oil pump rated pressure.....................20Mpa
3.Working air pressure........................0.6~0.7Mpa
3.Max. working travel.........................70mm
4.Max. working push power.....................5000KG
5.Overall dimension (L*W*H)...................1200*1030*1000mm
6.Weight......................................500KG
 |
|
