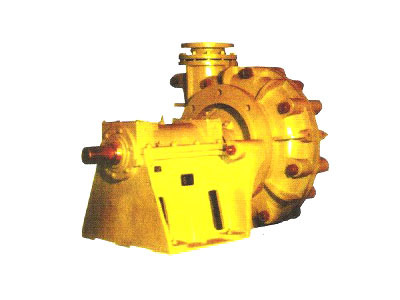

Zgb(p) Slurry Pump

ZGB(P) SLURRY PUMP

MATERIAL

PARTS	MATERIAL	STANDARD CODE
Bearing Support Tray (Double Volote Pump )Casing，Casing Cover	HT200	GB9439-88
	QT405-10、QT500-7	GB1348-88
	ZG230-450、ZG270-500	GB/T11352-89
Impeller Volute Liner, Guard Plate, (Single Volote Pump )Casing，Casing Cover	Wear resistent 1#-8#	GB8263-87
Expeller Discharge Pressure Cover	HT200	GB9439-88
	QT450-10、QT500-7	GB1348-88
	Stainless&Wear resistent Steel	GB2100-80
	Wear resistent 1#-8#	GB8263-87
Shaft	45	GB699-88
	40Cr	GB3077-88
Shaft Sleeve	45 (chrome plated surface)	GB699-88
	3Cr13	GB/T1220-92

APPLICATION:

Transporting slurry with strong corrosion proof and high concentration for such industries as metallurgy, mine, coal, power, buliding etc especially power plant slurry.

MODEL DESCRIPTION

100-ZGB(P)：

100 outlet diameter(mm)

Z Slurry pump

G High head

B Series code

(P) Multistage series

FEATURE:

1 Advanced structure

2 Energy-efficient

3 Designed with CAD software, good hydraulic performance, high efficiency and lower abrasion;

4 Wider flow channel, good ability of non-clogging and NPSH;
5 Expeller seal combined with packing seal and mechanical seal to guarantee no leakage
6 Reliable design ensures the MTBF (Mean Time between Failures) can be increased significantly;

7 Wet parts are made of special material with good ability of corrosion and wear;

8 The pumps can be connected in multi-stage in series under the allow pressure (3.6MPa).
